1. The Semiconductor Showdown

Let's talk MOSFETs. These little transistors are workhorses in the world of electronics, powering everything from your smartphone to your refrigerator. But are they active components, pulling their weight and contributing energy to a circuit? Or are they passive players, simply reacting to what's happening around them? It's a question that gets asked a lot, and the answer isn't always as straightforward as you might think. It really depends on how you look at it, so lets dig a little deeper.

Think of it like this: Imagine you're building a sandcastle. Sand is just sand (passive, right?), but you (the active component) are using your energy to shape it into something magnificent. MOSFETs are kinda similar — they can amplify or switch electronic signals and electrical power. So, it is clear that MOSFETs are the more skillful "sandcastle architect" in the electronic world.

Technically, MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) is an active component. The "active" part comes from its ability to control the flow of current between its source and drain terminals based on the voltage applied to its gate terminal. This is where the magic happens, enabling amplification and switching actions.

Unlike resistors, capacitors, and inductors (classic passive components), a MOSFET requires an external power supply to operate. It doesn't just sit there and react to signals; it actively modulates current flow. This modulation allows for signal amplification and control, which are key characteristics of active components.

MOSFET Funktioniert Grundlegendes Verständnis, Typen Und Anwendung

Understanding the Active Role of a MOSFET

2. More Than Just a Switch

To truly understand why MOSFETs are considered active, it's crucial to look at their ability to amplify signals. A small change in the gate voltage can result in a much larger change in the drain current. This "amplification" effect is a hallmark of active devices. Consider a simple audio amplifier: a tiny signal from your microphone is boosted by a MOSFET to drive your speakers and fill the room with sound. Pretty cool, huh?

Passive components, on the other hand, don't have this amplification capability. They can only attenuate or modify signals. Resistors reduce current, capacitors store energy, and inductors resist changes in current flow. They can't increase the signal strength. Think of them as volume knobs on a stereo; they can turn the sound down, but they can't make it louder on their own.

The active nature of a MOSFET also allows it to function as a switch, rapidly turning current on or off. This is the core principle behind digital electronics. Computers, smartphones, and countless other devices rely on MOSFETs to switch signals at lightning speed, performing complex calculations and controlling various functions.

So, while a MOSFET can be used in simple switching applications that might seem passive, its potential for amplification and active control solidifies its categorization as an active component. It's like having a Swiss Army knife — you can use it to cut a piece of string (simple task), but it's also capable of much more complex operations.

Influence Of Series Massive Resistance On Capacitance And Conductance

Delving into MOSFET Characteristics

3. Unveiling the Inner Workings of a Transistor

Let's peel back another layer and look at some key characteristics of MOSFETs that further cement their active status. One important factor is the presence of a gate voltage that controls the flow of current. This voltage acts as a "valve," regulating the amount of current that can pass through the device. This control mechanism is fundamental to active circuit operation.

Another telltale sign is the presence of a transconductance parameter (gm), which quantifies the relationship between the gate voltage and the drain current. A high transconductance indicates that even small changes in the gate voltage can produce significant changes in the drain current, demonstrating the MOSFET's amplification capabilities.

Furthermore, MOSFETs exhibit non-linear behavior. Their current-voltage characteristics are not linear like those of resistors. This non-linearity is essential for signal processing and amplification. It allows MOSFETs to operate in different regions (cutoff, triode, saturation), each with its own unique properties and applications.

Because MOSFETs are not linear, their operation requires careful biasing. This means setting up the correct operating point (quiescent point) to ensure that the device operates in the desired region and achieves optimal performance. Passive components, in contrast, typically don't require such precise biasing.

Difference Between MOSFET & BJT Basics How Does A

Why Does It Matter? Active vs. Passive Distinction

4. Practical Implications for Circuit Design

Now you might be thinking, "Okay, MOSFETs are active, great. But why should I care?" Well, the distinction between active and passive components has significant implications for circuit design. It helps engineers understand how different components will interact within a circuit and predict its overall behavior.

Active components like MOSFETs introduce gain and control into a circuit, enabling it to perform complex tasks such as amplification, oscillation, and switching. Passive components, on the other hand, provide basic circuit elements like resistance, capacitance, and inductance, which are essential for signal conditioning, filtering, and energy storage.

Understanding the role of each component type is crucial for designing efficient and reliable circuits. For example, you wouldn't try to build an amplifier using only passive components; you'd need an active device like a MOSFET to provide the necessary gain. Similarly, you wouldn't design a filter without including passive components like resistors and capacitors to shape the frequency response.

Therefore, knowing whether a component is active or passive is a fundamental piece of the puzzle when designing any electronic circuit. It guides the selection of appropriate components and helps predict how the circuit will behave under different conditions. It's like knowing the difference between a hammer and a screwdriver — both are useful tools, but they're designed for different purposes.

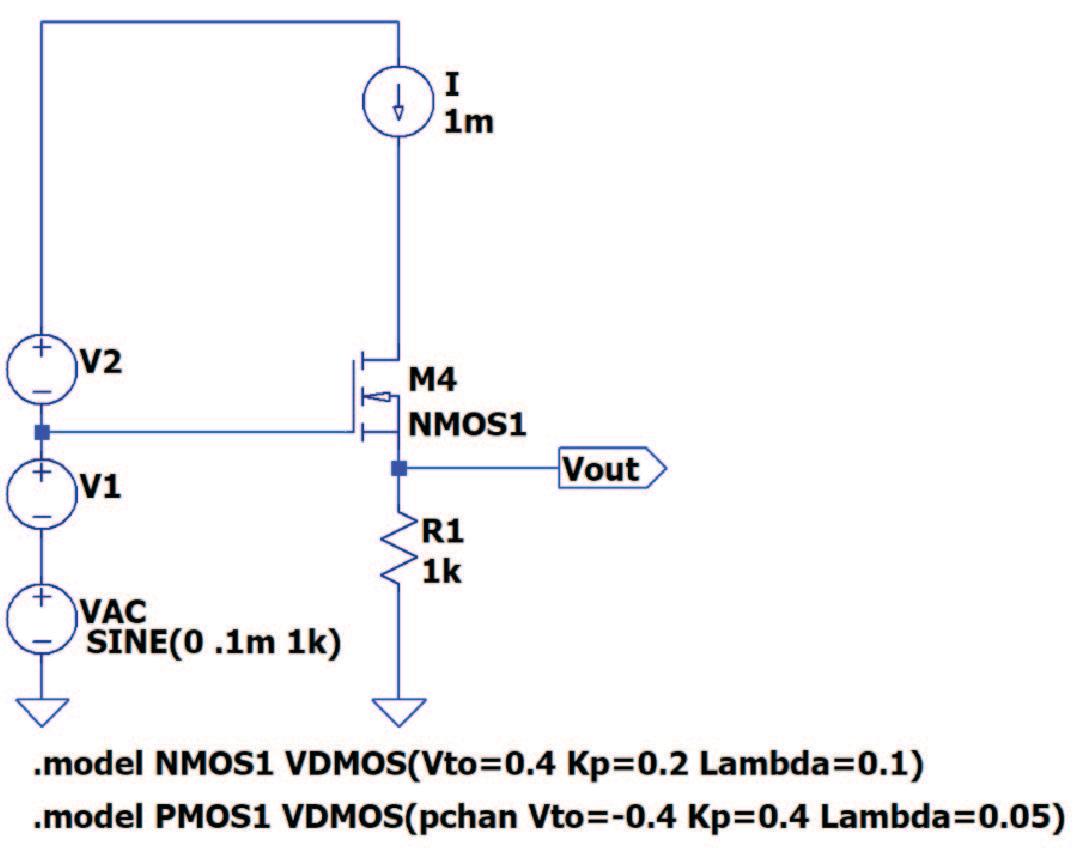

Solved The DC Voltage Sources (V1, And V2) Are All Adjusted

Wrapping It Up

5. The Verdict is In

So, to put a final stamp on it: MOSFETs are indeed active components. Their ability to amplify signals, switch currents, and control the flow of electrical energy firmly places them in the "active" category. While they may sometimes seem like simple switches, their potential for complex circuit operation is undeniable.

Think of MOSFETs as the conductors of an electronic orchestra. They orchestrate the flow of electrons, shaping and controlling the signals that drive our modern world. Without them, our smartphones would be dumb bricks, our computers would be glorified calculators, and our entire digital landscape would be a very different place.

Next time you're tinkering with an electronic project or designing a circuit, remember the active role of the MOSFET. Understanding its capabilities and limitations will empower you to create more efficient, reliable, and innovative designs. And who knows, maybe you'll even build the next groundbreaking technology!

So, embrace the power of the MOSFET, and let your creativity flow. After all, electronics is all about pushing the boundaries of what's possible, and MOSFETs are the perfect tool to help you do just that.

Power MOSFETs And SmallSignal Microchip Technology

Frequently Asked Questions (FAQs)

6. Your Burning MOSFET Questions Answered

Q: Are MOSFETs always used as active components?

A: While MOSFETs can be used in simple switching applications that might appear passive, their inherent ability to amplify signals and provide control firmly places them in the active category. So, even if they're just acting as a basic switch, they're still an active component capable of much more.

Q: What are some common applications of MOSFETs?

A: MOSFETs are used everywhere! Think power supplies, amplifiers, microprocessors, memory chips, motor control circuits, and countless other electronic devices. They're basically the unsung heroes of the digital age.

Q: How do MOSFETs compare to other types of transistors?

A: Compared to bipolar junction transistors (BJTs), MOSFETs generally have higher input impedance, lower power consumption, and are easier to fabricate. They are a bit more sensitive to static discharge, but overall a pretty robust solution for many applications.
