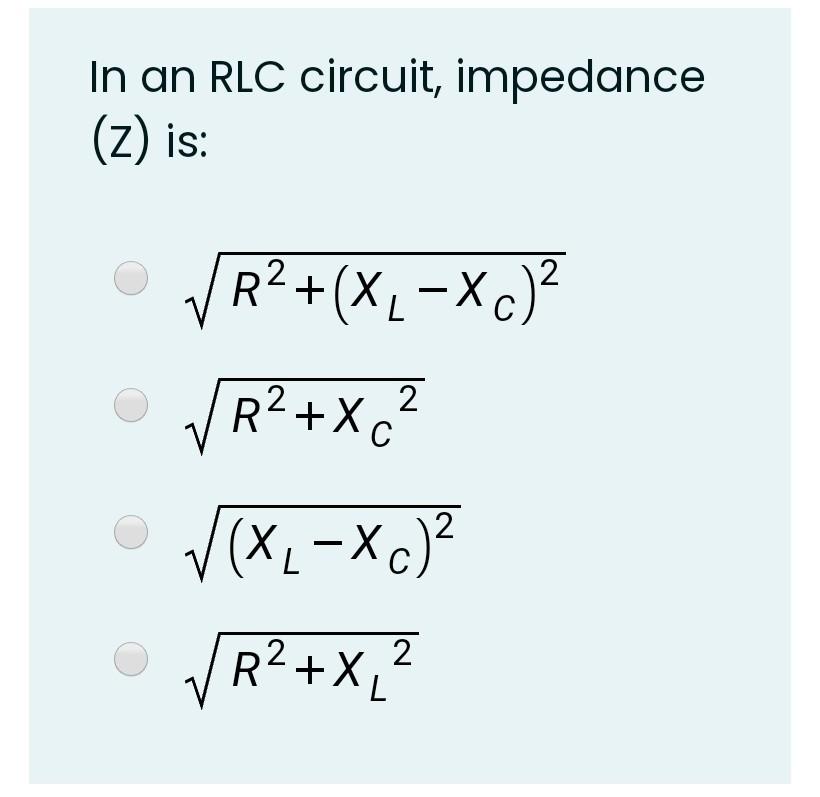

Inductive Reactance (XL)
2. How Does Inductive Reactance Work?
XL, or inductive reactance, is the opposition to AC current caused by an inductor. An inductor is basically a coil of wire, and when AC current flows through it, it creates a magnetic field. This magnetic field resists changes in the current, kind of like a lazy person resisting getting out of bed in the morning. The faster the current tries to change (i.e., the higher the frequency), the more the inductor resists.
Think of it like pushing a swing. If you push it gently and slowly, it's easy. But if you try to push it back and forth very quickly, the swing's inertia resists your efforts. An inductor behaves similarly — it resists rapid changes in current flow. Therefore, XL increases as the frequency increases.
Mathematically, XL is calculated as XL = 2 pi f L, where f is the frequency in Hertz and L is the inductance in Henries. Notice that the higher the frequency (f) or the inductance (L), the greater the XL. This means inductors are more effective at blocking high-frequency signals while allowing lower frequencies to pass through more easily.
So, inductors (and hence XL) can be your best friend when you want to filter out high-frequency noise in a circuit, or when you need to store energy in a magnetic field. Just remember that they are not fans of sudden changes!
Capacitive Reactance (XC): The Energetic Blocker
3. The Role of Capacitive Reactance
XC, or capacitive reactance, is the opposition to AC current caused by a capacitor. A capacitor stores electrical energy in an electric field, like a tiny rechargeable battery. When AC current flows into a capacitor, it charges up. As it charges, it creates an electric field that opposes the flow of more current. The lower the frequency of the AC signal, the longer the capacitor has to charge, and the more it opposes the current flow.
Imagine a parking garage filling up with cars. At first, it's easy to enter. But as more cars enter, it becomes harder and harder to find a space. Eventually, the garage is full, and no more cars can enter. A capacitor behaves similarly; it resists current flow more at lower frequencies as it charges.
The formula for calculating XC is XC = 1 / (2 pi f C), where f is the frequency in Hertz and C is the capacitance in Farads. Notice that XC is inversely proportional to frequency (f) and capacitance (C). This means the higher the frequency or the capacitance, the lower the XC. Capacitors are excellent at blocking DC signals (frequency = 0) and allowing AC signals to pass through, particularly at higher frequencies.
Thus, capacitors, due to their XC characteristics, are vital for filtering out DC components, smoothing out voltage fluctuations, and storing electrical energy in an electric field. They work contrary to inductors by happily allowing higher frequency signals pass through.
